Schema OpenMicroSim 0.3.xsd

schema location:	OpenMicroSim 0.3.xsd
attribute form default:
element form default:

Elements	Complex types	Simple types
AbstractElmt	AbstractElementType	AngularUnitType
D	AbstractStateType	DirectionType
FixedElmt	Direction	InterpolationType
Frame	ElementType	LengthUnitType
Frames	LocalizedElementType	Point3DType
MovingElmt	LocalizedStateType	PointType
P	Point3D	TimeUnitType
Prop	StateType
Simulation
Simulations
Transition
Units

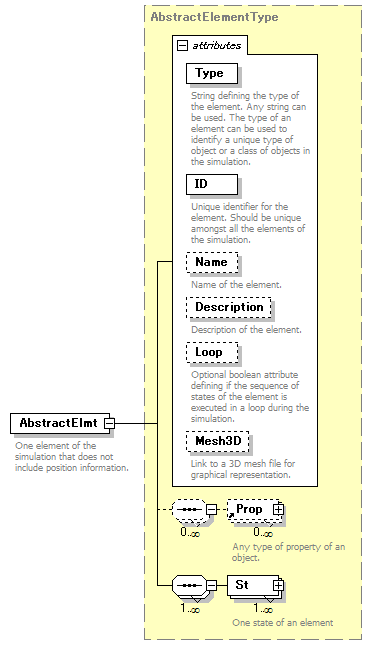

element AbstractElmt

diagram
type	AbstractElementType
properties	content  complex
children	Prop St
used by	element  Frame
attributes	Name   Type   Use   Default   Fixed   annotation Type xs:string required         documentation String defining the type of the element. Any string can be used. The type of an element can be used to identify a unique type of object or a class of objects in the simulation. ID xs:positiveInteger required         documentation Unique identifier for the element. Should be unique amongst all the elements of the simulation. Name xs:string optional         documentation Name of the element. Description xs:string optional         documentation Description of the element. Loop xs:boolean optional         documentation Optional boolean attribute defining if the sequence of states of the element is executed in a loop during the simulation. Mesh3D xs:anyURI          documentation Link to a 3D mesh file for graphical representation.
annotation	documentation One element of the simulation that does not include position information.
source	<xs:element name="AbstractElmt" type="AbstractElementType">   <xs:annotation>     <xs:documentation>One element of the simulation that does not include position information.</xs:documentation>   </xs:annotation> </xs:element>

element D

diagram
type	Direction
properties	content  complex
used by	complexType  LocalizedStateType
facets	Kind  Value  annotation  minLength  1  maxLength  3
annotation	documentation Direction of an element (ie. orientation in 3D). Defined by a text value ("Yaw" or "Yaw Pitch Roll").
source	<xs:element name="D" type="Direction">   <xs:annotation>     <xs:documentation>Direction of an element (ie. orientation in 3D). Defined by a text value ("Yaw" or "Yaw Pitch Roll").</xs:documentation>   </xs:annotation> </xs:element>

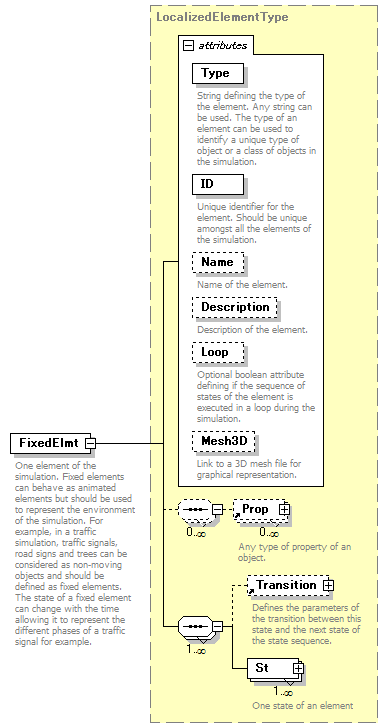

element FixedElmt

diagram
type	LocalizedElementType
properties	content  complex
children	Prop Transition St
used by	element  Frame
attributes	Name   Type   Use   Default   Fixed   annotation Type xs:string required         documentation String defining the type of the element. Any string can be used. The type of an element can be used to identify a unique type of object or a class of objects in the simulation. ID xs:positiveInteger required         documentation Unique identifier for the element. Should be unique amongst all the elements of the simulation. Name xs:string optional         documentation Name of the element. Description xs:string optional         documentation Description of the element. Loop xs:boolean optional         documentation Optional boolean attribute defining if the sequence of states of the element is executed in a loop during the simulation. Mesh3D xs:anyURI          documentation Link to a 3D mesh file for graphical representation.
annotation	documentation One element of the simulation. Fixed elements can behave as animated elements but should be used to represent the environment of the simulation. For example, in a traffic simulation, traffic signals, road signs and trees can be considered as non-moving objects and should be defined as fixed elements. The state of a fixed element can change with the time allowing it to represent the different phases of a traffic signal for example.
source	<xs:element name="FixedElmt" type="LocalizedElementType">   <xs:annotation>     <xs:documentation>One element of the simulation. Fixed elements can behave as animated elements but should be used to represent the environment of the simulation. For example, in a traffic simulation, traffic signals, road signs and trees can be considered as non-moving objects and should be defined as fixed elements. The state of a fixed element can change with the time allowing it to represent the different phases of a traffic signal for example.</xs:documentation>   </xs:annotation> </xs:element>

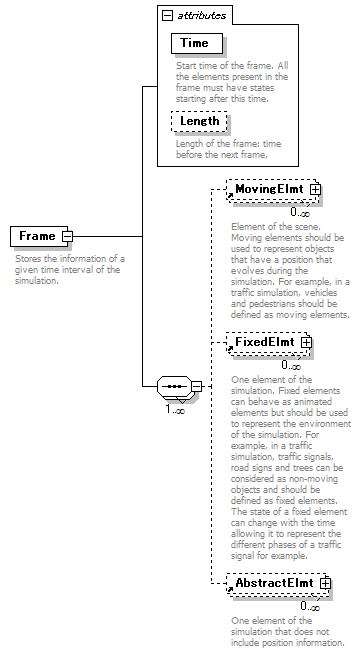

element Frame

diagram
properties	content  complex
children	MovingElmt FixedElmt AbstractElmt
used by	element  Frames
attributes	Name   Type   Use   Default   Fixed   annotation Time xs:double required         documentation Start time of the frame. All the elements present in the frame must have states starting after this time. Length xs:double optional         documentation Length of the frame: time before the next frame.
annotation	documentation Stores the information of a given time interval of the simulation.
source	<xs:element name="Frame">   <xs:annotation>     <xs:documentation>Stores the information of a given time interval of the simulation.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence maxOccurs="unbounded">       <xs:element ref="MovingElmt" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Element of the scene. Moving elements should be used to represent objects that have a position that evolves during the simulation. For example, in a traffic simulation, vehicles and pedestrians should be defined as moving elements.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element ref="FixedElmt" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="AbstractElmt" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="Time" type="xs:double" use="required">       <xs:annotation>         <xs:documentation>Start time of the frame. All the elements present in the frame must have states starting after this time.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="Length" type="xs:double" use="optional">       <xs:annotation>         <xs:documentation>Length of the frame: time before the next frame.</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute Frame/@Time

type	xs:double
properties	isRef  0 use  required
annotation	documentation Start time of the frame. All the elements present in the frame must have states starting after this time.
source	<xs:attribute name="Time" type="xs:double" use="required">   <xs:annotation>     <xs:documentation>Start time of the frame. All the elements present in the frame must have states starting after this time.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute Frame/@Length

type	xs:double
properties	isRef  0 use  optional
annotation	documentation Length of the frame: time before the next frame.
source	<xs:attribute name="Length" type="xs:double" use="optional">   <xs:annotation>     <xs:documentation>Length of the frame: time before the next frame.</xs:documentation>   </xs:annotation> </xs:attribute>

element Frames

diagram
properties	content  complex
children	Frame
used by	element  Simulation
annotation	documentation List of frames
source	<xs:element name="Frames">   <xs:annotation>     <xs:documentation>List of frames</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element ref="Frame" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Stores the information for a given time interval of the simulation. A frame is an aggregation of elements of a simulation.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

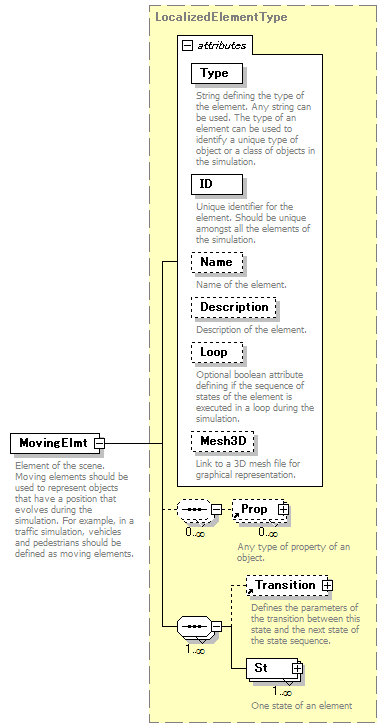

element MovingElmt

diagram
type	LocalizedElementType
properties	content  complex
children	Prop Transition St
used by	element  Frame
attributes	Name   Type   Use   Default   Fixed   annotation Type xs:string required         documentation String defining the type of the element. Any string can be used. The type of an element can be used to identify a unique type of object or a class of objects in the simulation. ID xs:positiveInteger required         documentation Unique identifier for the element. Should be unique amongst all the elements of the simulation. Name xs:string optional         documentation Name of the element. Description xs:string optional         documentation Description of the element. Loop xs:boolean optional         documentation Optional boolean attribute defining if the sequence of states of the element is executed in a loop during the simulation. Mesh3D xs:anyURI          documentation Link to a 3D mesh file for graphical representation.
annotation	documentation Element of the scene. Moving elements should be used to represent objects that have a position that evolves during the simulation. For example, in a traffic simulation, vehicles and pedestrians should be defined as moving elements.
source	<xs:element name="MovingElmt" type="LocalizedElementType">   <xs:annotation>     <xs:documentation>Element of the scene. Moving elements should be used to represent objects that have a position that evolves during the simulation. For example, in a traffic simulation, vehicles and pedestrians should be defined as moving elements.</xs:documentation>   </xs:annotation> </xs:element>

element P

diagram
type	Point3D
properties	content  complex
used by	complexType  LocalizedStateType
facets	Kind  Value  annotation  minLength  2  maxLength  3
annotation	documentation Represents a 3D or 2D point type. Defined by a coordinate text value ("X Y" or "X Y Z"). Usually X and Y are used for the horizontal coordinates and Z for the altitude.
source	<xs:element name="P" type="Point3D">   <xs:annotation>     <xs:documentation>Represents a 3D or 2D point type. Defined by a coordinate text value ("X Y" or "X Y Z"). Usually X and Y are used for the horizontal coordinates and Z for the altitude.</xs:documentation>   </xs:annotation> </xs:element>

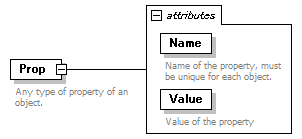

element Prop

diagram
properties	content  complex
used by	complexTypes  ElementType StateType
attributes	Name   Type   Use   Default   Fixed   annotation Name xs:string required         documentation Name of the property, must be unique for each object. Value xs:string required         documentation Value of the property
annotation	documentation Any type of property of an object.
source	<xs:element name="Prop">   <xs:annotation>     <xs:documentation>Any type of property of an object.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="Name" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>Name of the property, must be unique for each object.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="Value" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>Value of the property</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute Prop/@Name

type	xs:string
properties	isRef  0 use  required
annotation	documentation Name of the property, must be unique for each object.
source	<xs:attribute name="Name" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>Name of the property, must be unique for each object.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute Prop/@Value

type	xs:string
properties	isRef  0 use  required
annotation	documentation Value of the property
source	<xs:attribute name="Value" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>Value of the property</xs:documentation>   </xs:annotation> </xs:attribute>

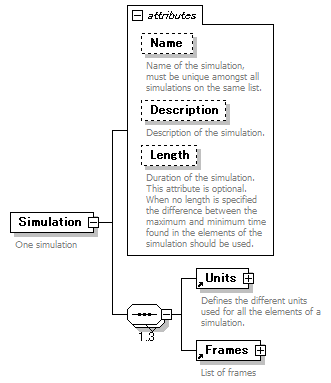

element Simulation

diagram
properties	content  complex
children	Units Frames
used by	element  Simulations
attributes	Name   Type   Use   Default   Fixed   annotation Name xs:string          documentation Name of the simulation, must be unique amongst all simulations on the same list. Description xs:string          documentation Description of the simulation. Length xs:double optional         documentation Duration of the simulation. This attribute is optional. When no length is specified the difference between the maximum and minimum time found in the elements of the simulation should be used.
annotation	documentation One simulation
source	<xs:element name="Simulation">   <xs:annotation>     <xs:documentation>One simulation</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence maxOccurs="3">       <xs:element ref="Units"/>       <xs:element ref="Frames"/>     </xs:sequence>     <xs:attribute name="Name" type="xs:string">       <xs:annotation>         <xs:documentation>Name of the simulation, must be unique amongst all simulations on the same list.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="Description" type="xs:string">       <xs:annotation>         <xs:documentation>Description of the simulation. </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="Length" type="xs:double" use="optional">       <xs:annotation>         <xs:documentation>Duration of the simulation. This attribute is optional. When no length is specified the difference between the maximum and minimum time found in the elements of the simulation should be used.</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute Simulation/@Name

type	xs:string
properties	isRef  0
annotation	documentation Name of the simulation, must be unique amongst all simulations on the same list.
source	<xs:attribute name="Name" type="xs:string">   <xs:annotation>     <xs:documentation>Name of the simulation, must be unique amongst all simulations on the same list.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute Simulation/@Description

type	xs:string
properties	isRef  0
annotation	documentation Description of the simulation.
source	<xs:attribute name="Description" type="xs:string">   <xs:annotation>     <xs:documentation>Description of the simulation. </xs:documentation>   </xs:annotation> </xs:attribute>

attribute Simulation/@Length

type	xs:double
properties	isRef  0 use  optional
annotation	documentation Duration of the simulation. This attribute is optional. When no length is specified the difference between the maximum and minimum time found in the elements of the simulation should be used.
source	<xs:attribute name="Length" type="xs:double" use="optional">   <xs:annotation>     <xs:documentation>Duration of the simulation. This attribute is optional. When no length is specified the difference between the maximum and minimum time found in the elements of the simulation should be used.</xs:documentation>   </xs:annotation> </xs:attribute>

element Simulations

diagram
properties	content  complex
children	Simulation
annotation	documentation List of simulations
source	<xs:element name="Simulations">   <xs:annotation>     <xs:documentation>List of simulations</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence maxOccurs="unbounded">       <xs:element ref="Simulation" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

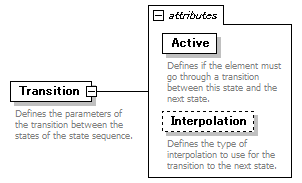

element Transition

diagram
properties	content  complex
used by	complexTypes  LocalizedElementType LocalizedStateType
attributes	Name   Type   Use   Default   Fixed   annotation Active xs:boolean required         documentation Defines if the element must go through a transition between this state and the next state. Interpolation InterpolationType optional   Linear      documentation Defines the type of interpolation to use for the transition to the next state.
annotation	documentation Defines the parameters of the transition between the states of the state sequence.
source	<xs:element name="Transition">   <xs:annotation>     <xs:documentation>Defines the parameters of the transition between the states of the state sequence.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="Active" type="xs:boolean" use="required">       <xs:annotation>         <xs:documentation>Defines if the element must go through a transition between this state and the next state.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="Interpolation" type="InterpolationType" use="optional" default="Linear">       <xs:annotation>         <xs:documentation>Defines the type of interpolation to use for the transition to the next state.</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute Transition/@Active

type	xs:boolean
properties	isRef  0 use  required
annotation	documentation Defines if the element must go through a transition between this state and the next state.
source	<xs:attribute name="Active" type="xs:boolean" use="required">   <xs:annotation>     <xs:documentation>Defines if the element must go through a transition between this state and the next state.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute Transition/@Interpolation

type	InterpolationType
properties	isRef  0 default  Linear use  optional
facets	Kind  Value  annotation  enumeration  Linear  enumeration  Polynomial  enumeration  Spline
annotation	documentation Defines the type of interpolation to use for the transition to the next state.
source	<xs:attribute name="Interpolation" type="InterpolationType" use="optional" default="Linear">   <xs:annotation>     <xs:documentation>Defines the type of interpolation to use for the transition to the next state.</xs:documentation>   </xs:annotation> </xs:attribute>

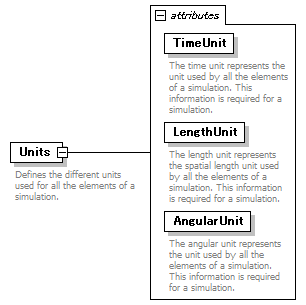

element Units

diagram
properties	content  complex
used by	element  Simulation
attributes	Name   Type   Use   Default   Fixed   annotation TimeUnit TimeUnitType required         documentation The time unit represents the unit used by all the elements of a simulation. This information is required for a simulation. LengthUnit LengthUnitType required         documentation The length unit represents the spatial length unit used  by all the elements of a simulation. This information is required for a simulation. AngularUnit AngularUnitType required         documentation The angular unit represents the unit used by all the elements of a simulation. This information is required for a simulation.
annotation	documentation Defines the different units used for all the elements of a simulation.
source	<xs:element name="Units">   <xs:annotation>     <xs:documentation>Defines the different units used for all the elements of a simulation.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="TimeUnit" type="TimeUnitType" use="required">       <xs:annotation>         <xs:documentation>The time unit represents the unit used by all the elements of a simulation. This information is required for a simulation.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="LengthUnit" type="LengthUnitType" use="required">       <xs:annotation>         <xs:documentation>The length unit represents the spatial length unit used  by all the elements of a simulation. This information is required for a simulation.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="AngularUnit" type="AngularUnitType" use="required">       <xs:annotation>         <xs:documentation>The angular unit represents the unit used by all the elements of a simulation. This information is required for a simulation.</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute Units/@TimeUnit

type	TimeUnitType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  Nanosecond  enumeration  Microsecond  enumeration  Millisecond  enumeration  Second  enumeration  Minute  enumeration  Hour  enumeration  Day  enumeration  Month  enumeration  Year  enumeration  Other
annotation	documentation The time unit represents the unit used by all the elements of a simulation. This information is required for a simulation.
source	<xs:attribute name="TimeUnit" type="TimeUnitType" use="required">   <xs:annotation>     <xs:documentation>The time unit represents the unit used by all the elements of a simulation. This information is required for a simulation.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute Units/@LengthUnit

type	LengthUnitType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  Nanometer  enumeration  Micrometer  enumeration  Millimeter  enumeration  Meter  enumeration  Kilometer  enumeration  Other
annotation	documentation The length unit represents the spatial length unit used  by all the elements of a simulation. This information is required for a simulation.
source	<xs:attribute name="LengthUnit" type="LengthUnitType" use="required">   <xs:annotation>     <xs:documentation>The length unit represents the spatial length unit used  by all the elements of a simulation. This information is required for a simulation.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute Units/@AngularUnit

type	AngularUnitType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  Radian  enumeration  Degree
annotation	documentation The angular unit represents the unit used by all the elements of a simulation. This information is required for a simulation.
source	<xs:attribute name="AngularUnit" type="AngularUnitType" use="required">   <xs:annotation>     <xs:documentation>The angular unit represents the unit used by all the elements of a simulation. This information is required for a simulation.</xs:documentation>   </xs:annotation> </xs:attribute>

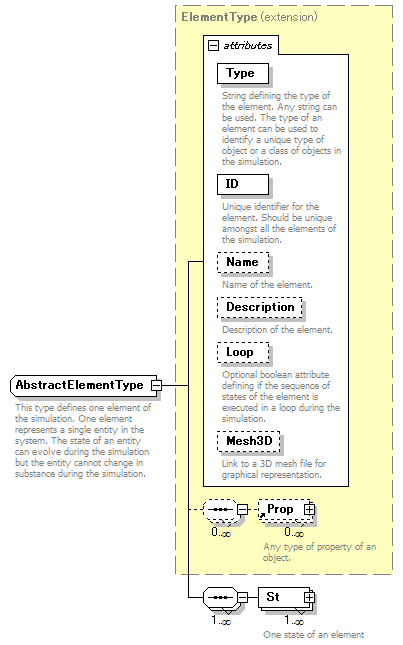

complexType AbstractElementType

diagram
type	extension of ElementType
properties	base  ElementType
children	Prop St
used by	element  AbstractElmt
attributes	Name   Type   Use   Default   Fixed   annotation Type xs:string required         documentation String defining the type of the element. Any string can be used. The type of an element can be used to identify a unique type of object or a class of objects in the simulation. ID xs:positiveInteger required         documentation Unique identifier for the element. Should be unique amongst all the elements of the simulation. Name xs:string optional         documentation Name of the element. Description xs:string optional         documentation Description of the element. Loop xs:boolean optional         documentation Optional boolean attribute defining if the sequence of states of the element is executed in a loop during the simulation. Mesh3D xs:anyURI          documentation Link to a 3D mesh file for graphical representation.
annotation	documentation This type defines one element of the simulation. One element represents a single entity in the system. The state of an entity can evolve during the simulation but the entity cannot change in substance during the simulation.
source	<xs:complexType name="AbstractElementType">   <xs:annotation>     <xs:documentation>This type defines one element of the simulation. One element represents a single entity in the system. The state of an entity can evolve during the simulation but the entity cannot change in substance during the simulation. </xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="ElementType">       <xs:sequence maxOccurs="unbounded">         <xs:element name="St" type="AbstractStateType" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>One state of an element</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element AbstractElementType/St

diagram
type	AbstractStateType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	Prop
attributes	Name   Type   Use   Default   Fixed   annotation T xs:double optional         documentation Defines the time when an element is in a given state. The time must be unique amongst all the states of one element. If no time is specified the time of the parent frame is used. Val xs:string optional         documentation Defines the state of an object. The state can be described using any string. Anim xs:string optional         documentation This attribute applies for an element represented by a meta object. It is used to animate parts of the meta object. The name of an animation starting at the time of the state can be specified with this attribute. LastState xs:boolean optional         documentation Indicates if the state is the last state of the element.
annotation	documentation One state of an element
source	<xs:element name="St" type="AbstractStateType" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>One state of an element</xs:documentation>   </xs:annotation> </xs:element>

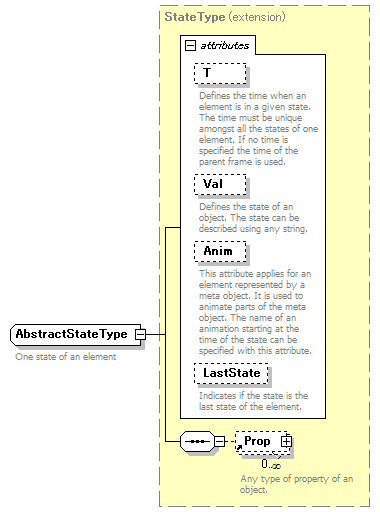

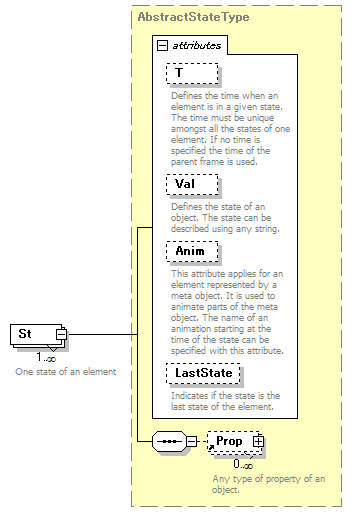

complexType AbstractStateType

diagram
type	extension of StateType
properties	base  StateType
children	Prop
used by	element  AbstractElementType/St
attributes	Name   Type   Use   Default   Fixed   annotation T xs:double optional         documentation Defines the time when an element is in a given state. The time must be unique amongst all the states of one element. If no time is specified the time of the parent frame is used. Val xs:string optional         documentation Defines the state of an object. The state can be described using any string. Anim xs:string optional         documentation This attribute applies for an element represented by a meta object. It is used to animate parts of the meta object. The name of an animation starting at the time of the state can be specified with this attribute. LastState xs:boolean optional         documentation Indicates if the state is the last state of the element.
annotation	documentation One state of an element
source	<xs:complexType name="AbstractStateType">   <xs:annotation>     <xs:documentation>One state of an element</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="StateType"/>   </xs:complexContent> </xs:complexType>

complexType Direction

diagram
type	extension of DirectionType
properties	base  DirectionType
used by	element  D
facets	Kind  Value  annotation  minLength  1  maxLength  3
annotation	documentation 3D point type
source	<xs:complexType name="Direction">   <xs:annotation>     <xs:documentation>3D point type</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="DirectionType"/>   </xs:simpleContent> </xs:complexType>

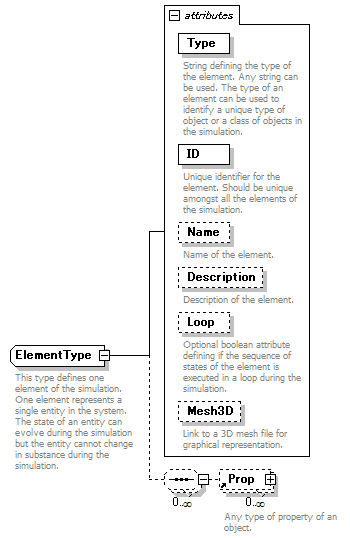

complexType ElementType

diagram
children	Prop
used by	complexTypes  AbstractElementType LocalizedElementType
attributes	Name   Type   Use   Default   Fixed   annotation Type xs:string required         documentation String defining the type of the element. Any string can be used. The type of an element can be used to identify a unique type of object or a class of objects in the simulation. ID xs:positiveInteger required         documentation Unique identifier for the element. Should be unique amongst all the elements of the simulation. Name xs:string optional         documentation Name of the element. Description xs:string optional         documentation Description of the element. Loop xs:boolean optional         documentation Optional boolean attribute defining if the sequence of states of the element is executed in a loop during the simulation. Mesh3D xs:anyURI          documentation Link to a 3D mesh file for graphical representation.
annotation	documentation This type defines one element of the simulation. One element represents a single entity in the system. The state of an entity can evolve during the simulation but the entity cannot change in substance during the simulation.
source	<xs:complexType name="ElementType">   <xs:annotation>     <xs:documentation>This type defines one element of the simulation. One element represents a single entity in the system. The state of an entity can evolve during the simulation but the entity cannot change in substance during the simulation. </xs:documentation>   </xs:annotation>   <xs:sequence minOccurs="0" maxOccurs="unbounded">     <xs:element ref="Prop" minOccurs="0" maxOccurs="unbounded"/>   </xs:sequence>   <xs:attribute name="Type" type="xs:string" use="required">     <xs:annotation>       <xs:documentation>String defining the type of the element. Any string can be used. The type of an element can be used to identify a unique type of object or a class of objects in the simulation.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="ID" type="xs:positiveInteger" use="required">     <xs:annotation>       <xs:documentation>Unique identifier for the element. Should be unique amongst all the elements of the simulation.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="Name" type="xs:string" use="optional">     <xs:annotation>       <xs:documentation>Name of the element.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="Description" type="xs:string" use="optional">     <xs:annotation>       <xs:documentation>Description of the element.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="Loop" type="xs:boolean" use="optional">     <xs:annotation>       <xs:documentation>Optional boolean attribute defining if the sequence of states of the element is executed in a loop during the simulation.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="Mesh3D" type="xs:anyURI">     <xs:annotation>       <xs:documentation>Link to a 3D mesh file for graphical representation.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute ElementType/@Type

type	xs:string
properties	isRef  0 use  required
annotation	documentation String defining the type of the element. Any string can be used. The type of an element can be used to identify a unique type of object or a class of objects in the simulation.
source	<xs:attribute name="Type" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>String defining the type of the element. Any string can be used. The type of an element can be used to identify a unique type of object or a class of objects in the simulation.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute ElementType/@ID

type	xs:positiveInteger
properties	isRef  0 use  required
annotation	documentation Unique identifier for the element. Should be unique amongst all the elements of the simulation.
source	<xs:attribute name="ID" type="xs:positiveInteger" use="required">   <xs:annotation>     <xs:documentation>Unique identifier for the element. Should be unique amongst all the elements of the simulation.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute ElementType/@Name

type	xs:string
properties	isRef  0 use  optional
annotation	documentation Name of the element.
source	<xs:attribute name="Name" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>Name of the element.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute ElementType/@Description

type	xs:string
properties	isRef  0 use  optional
annotation	documentation Description of the element.
source	<xs:attribute name="Description" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>Description of the element.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute ElementType/@Loop

type	xs:boolean
properties	isRef  0 use  optional
annotation	documentation Optional boolean attribute defining if the sequence of states of the element is executed in a loop during the simulation.
source	<xs:attribute name="Loop" type="xs:boolean" use="optional">   <xs:annotation>     <xs:documentation>Optional boolean attribute defining if the sequence of states of the element is executed in a loop during the simulation.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute ElementType/@Mesh3D

type	xs:anyURI
properties	isRef  0
annotation	documentation Link to a 3D mesh file for graphical representation.
source	<xs:attribute name="Mesh3D" type="xs:anyURI">   <xs:annotation>     <xs:documentation>Link to a 3D mesh file for graphical representation.</xs:documentation>   </xs:annotation> </xs:attribute>

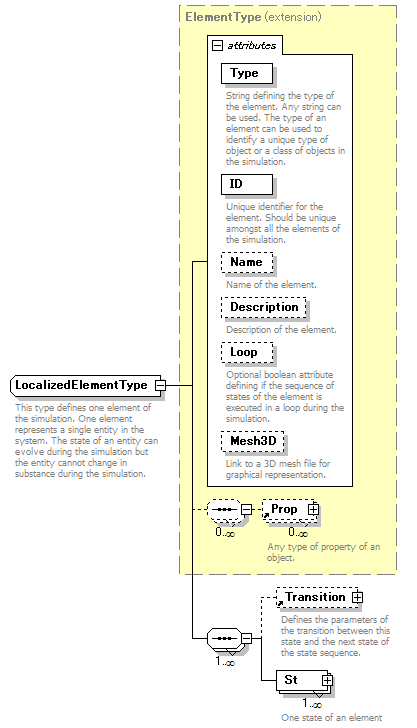

complexType LocalizedElementType

diagram
type	extension of ElementType
properties	base  ElementType
children	Prop Transition St
used by	elements  FixedElmt MovingElmt
attributes	Name   Type   Use   Default   Fixed   annotation Type xs:string required         documentation String defining the type of the element. Any string can be used. The type of an element can be used to identify a unique type of object or a class of objects in the simulation. ID xs:positiveInteger required         documentation Unique identifier for the element. Should be unique amongst all the elements of the simulation. Name xs:string optional         documentation Name of the element. Description xs:string optional         documentation Description of the element. Loop xs:boolean optional         documentation Optional boolean attribute defining if the sequence of states of the element is executed in a loop during the simulation. Mesh3D xs:anyURI          documentation Link to a 3D mesh file for graphical representation.
annotation	documentation This type defines one element of the simulation. One element represents a single entity in the system. The state of an entity can evolve during the simulation but the entity cannot change in substance during the simulation.
source	<xs:complexType name="LocalizedElementType">   <xs:annotation>     <xs:documentation>This type defines one element of the simulation. One element represents a single entity in the system. The state of an entity can evolve during the simulation but the entity cannot change in substance during the simulation. </xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="ElementType">       <xs:sequence maxOccurs="unbounded">         <xs:element ref="Transition" minOccurs="0">           <xs:annotation>             <xs:documentation>Defines the parameters of the transition between this state and the next state of the state sequence.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="St" type="LocalizedStateType" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>One state of an element</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element LocalizedElementType/St

diagram
type	LocalizedStateType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	Prop P D Transition
attributes	Name   Type   Use   Default   Fixed   annotation T xs:double optional         documentation Defines the time when an element is in a given state. The time must be unique amongst all the states of one element. If no time is specified the time of the parent frame is used. Val xs:string optional         documentation Defines the state of an object. The state can be described using any string. Anim xs:string optional         documentation This attribute applies for an element represented by a meta object. It is used to animate parts of the meta object. The name of an animation starting at the time of the state can be specified with this attribute. LastState xs:boolean optional         documentation Indicates if the state is the last state of the element.
annotation	documentation One state of an element
source	<xs:element name="St" type="LocalizedStateType" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>One state of an element</xs:documentation>   </xs:annotation> </xs:element>

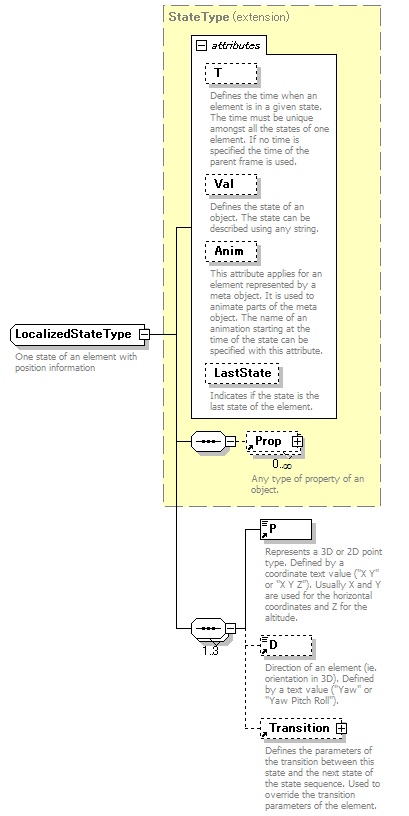

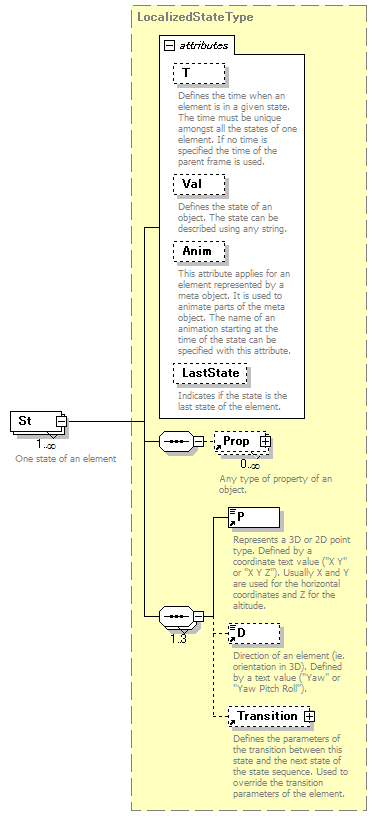

complexType LocalizedStateType

diagram
type	extension of StateType
properties	base  StateType
children	Prop P D Transition
used by	element  LocalizedElementType/St
attributes	Name   Type   Use   Default   Fixed   annotation T xs:double optional         documentation Defines the time when an element is in a given state. The time must be unique amongst all the states of one element. If no time is specified the time of the parent frame is used. Val xs:string optional         documentation Defines the state of an object. The state can be described using any string. Anim xs:string optional         documentation This attribute applies for an element represented by a meta object. It is used to animate parts of the meta object. The name of an animation starting at the time of the state can be specified with this attribute. LastState xs:boolean optional         documentation Indicates if the state is the last state of the element.
annotation	documentation One state of an element with position information
source	<xs:complexType name="LocalizedStateType">   <xs:annotation>     <xs:documentation>One state of an element with position information</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="StateType">       <xs:sequence maxOccurs="3">         <xs:element ref="P"/>         <xs:element ref="D" minOccurs="0"/>         <xs:element ref="Transition" minOccurs="0">           <xs:annotation>             <xs:documentation>Defines the parameters of the transition between this state and the next state of the state sequence. Used to override the transition parameters of the element.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

complexType Point3D

diagram
type	extension of Point3DType
properties	base  Point3DType
used by	element  P
facets	Kind  Value  annotation  minLength  2  maxLength  3
annotation	documentation Represents a 3D or 2D point type. Defined by a coordinate text value ("X Y" or "X Y Z"). Usualy X and Y are used for the horizontal coordinates and Z for the altitude.
source	<xs:complexType name="Point3D">   <xs:annotation>     <xs:documentation>Represents a 3D or 2D point type. Defined by a coordinate text value ("X Y" or "X Y Z"). Usualy X and Y are used for the horizontal coordinates and Z for the altitude.</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="Point3DType"/>   </xs:simpleContent> </xs:complexType>

complexType StateType

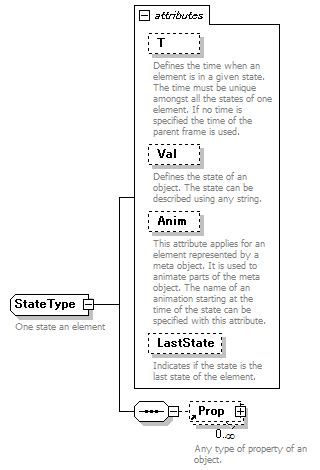

diagram
children	Prop
used by	complexTypes  AbstractStateType LocalizedStateType
attributes	Name   Type   Use   Default   Fixed   annotation T xs:double optional         documentation Defines the time when an element is in a given state. The time must be unique amongst all the states of one element. If no time is specified the time of the parent frame is used. Val xs:string optional         documentation Defines the state of an object. The state can be described using any string. Anim xs:string optional         documentation This attribute applies for an element represented by a meta object. It is used to animate parts of the meta object. The name of an animation starting at the time of the state can be specified with this attribute. LastState xs:boolean optional         documentation Indicates if the state is the last state of the element.
annotation	documentation One state an element
source	<xs:complexType name="StateType">   <xs:annotation>     <xs:documentation>One state an element</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element ref="Prop" minOccurs="0" maxOccurs="unbounded"/>   </xs:sequence>   <xs:attribute name="T" type="xs:double" use="optional">     <xs:annotation>       <xs:documentation>Defines the time when an element is in a given state. The time must be unique amongst all the states of one element. If no time is specified the time of the parent frame is used.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="Val" type="xs:string" use="optional">     <xs:annotation>       <xs:documentation>Defines the state of an object. The state can be described using any string.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="Anim" type="xs:string" use="optional">     <xs:annotation>       <xs:documentation>This attribute applies for an element represented by a meta object. It is used to animate parts of the meta object. The name of an animation starting at the time of the state can be specified with this attribute.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="LastState" type="xs:boolean" use="optional">     <xs:annotation>       <xs:documentation>Indicates if the state is the last state of the element.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute StateType/@T

type	xs:double
properties	isRef  0 use  optional
annotation	documentation Defines the time when an element is in a given state. The time must be unique amongst all the states of one element. If no time is specified the time of the parent frame is used.
source	<xs:attribute name="T" type="xs:double" use="optional">   <xs:annotation>     <xs:documentation>Defines the time when an element is in a given state. The time must be unique amongst all the states of one element. If no time is specified the time of the parent frame is used.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute StateType/@Val

type	xs:string
properties	isRef  0 use  optional
annotation	documentation Defines the state of an object. The state can be described using any string.
source	<xs:attribute name="Val" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>Defines the state of an object. The state can be described using any string.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute StateType/@Anim

type	xs:string
properties	isRef  0 use  optional
annotation	documentation This attribute applies for an element represented by a meta object. It is used to animate parts of the meta object. The name of an animation starting at the time of the state can be specified with this attribute.
source	<xs:attribute name="Anim" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>This attribute applies for an element represented by a meta object. It is used to animate parts of the meta object. The name of an animation starting at the time of the state can be specified with this attribute.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute StateType/@LastState

type	xs:boolean
properties	isRef  0 use  optional
annotation	documentation Indicates if the state is the last state of the element.
source	<xs:attribute name="LastState" type="xs:boolean" use="optional">   <xs:annotation>     <xs:documentation>Indicates if the state is the last state of the element.</xs:documentation>   </xs:annotation> </xs:attribute>

simpleType AngularUnitType

type	restriction of xs:string
used by	attribute  Units/@AngularUnit
facets	Kind  Value  annotation  enumeration  Radian  enumeration  Degree
annotation	documentation List of the different angular units available
source	<xs:simpleType name="AngularUnitType">   <xs:annotation>     <xs:documentation>List of the different angular units available</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:enumeration value="Radian"/>     <xs:enumeration value="Degree"/>   </xs:restriction> </xs:simpleType>

simpleType DirectionType

type	restriction of PointType
used by	complexType  Direction
facets	Kind  Value  annotation  minLength  1  maxLength  3
annotation	documentation 3D direction (Yaw) or (Yaw, Pitch, Roll) angles
source	<xs:simpleType name="DirectionType">   <xs:annotation>     <xs:documentation>3D direction (Yaw) or (Yaw, Pitch, Roll) angles</xs:documentation>   </xs:annotation>   <xs:restriction base="PointType">     <xs:minLength value="1"/>     <xs:maxLength value="3"/>   </xs:restriction> </xs:simpleType>

simpleType InterpolationType

type	restriction of xs:string
used by	attribute  Transition/@Interpolation
facets	Kind  Value  annotation  enumeration  Linear  enumeration  Polynomial  enumeration  Spline
annotation	documentation List of the different types of interpolation
source	<xs:simpleType name="InterpolationType">   <xs:annotation>     <xs:documentation>List of the different types of interpolation</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:enumeration value="Linear"/>     <xs:enumeration value="Polynomial"/>     <xs:enumeration value="Spline"/>   </xs:restriction> </xs:simpleType>

simpleType LengthUnitType

type	restriction of xs:string
used by	attribute  Units/@LengthUnit
facets	Kind  Value  annotation  enumeration  Nanometer  enumeration  Micrometer  enumeration  Millimeter  enumeration  Meter  enumeration  Kilometer  enumeration  Other
annotation	documentation List of the different length units available for spatial information
source	<xs:simpleType name="LengthUnitType">   <xs:annotation>     <xs:documentation>List of the different length units available for spatial information</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:enumeration value="Nanometer"/>     <xs:enumeration value="Micrometer"/>     <xs:enumeration value="Millimeter"/>     <xs:enumeration value="Meter"/>     <xs:enumeration value="Kilometer"/>     <xs:enumeration value="Other"/>   </xs:restriction> </xs:simpleType>

simpleType Point3DType

type	restriction of PointType
used by	complexType  Point3D
facets	Kind  Value  annotation  minLength  2  maxLength  3
annotation	documentation 3D position (X,Y) or (X,Y,Z)
source	<xs:simpleType name="Point3DType">   <xs:annotation>     <xs:documentation>3D position (X,Y) or (X,Y,Z)</xs:documentation>   </xs:annotation>   <xs:restriction base="PointType">     <xs:minLength value="2"/>     <xs:maxLength value="3"/>   </xs:restriction> </xs:simpleType>

simpleType PointType

type	list of xs:double
used by	simpleTypes  DirectionType Point3DType
annotation	documentation List of coordinates
source	<xs:simpleType name="PointType">   <xs:annotation>     <xs:documentation>List of coordinates</xs:documentation>   </xs:annotation>   <xs:list itemType="xs:double"/> </xs:simpleType>

simpleType TimeUnitType

type	restriction of xs:string
used by	attribute  Units/@TimeUnit
facets	Kind  Value  annotation  enumeration  Nanosecond  enumeration  Microsecond  enumeration  Millisecond  enumeration  Second  enumeration  Minute  enumeration  Hour  enumeration  Day  enumeration  Month  enumeration  Year  enumeration  Other
annotation	documentation List of the different time units available
source	<xs:simpleType name="TimeUnitType">   <xs:annotation>     <xs:documentation>List of the different time units available</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:enumeration value="Nanosecond"/>     <xs:enumeration value="Microsecond"/>     <xs:enumeration value="Millisecond"/>     <xs:enumeration value="Second"/>     <xs:enumeration value="Minute"/>     <xs:enumeration value="Hour"/>     <xs:enumeration value="Day"/>     <xs:enumeration value="Month"/>     <xs:enumeration value="Year"/>     <xs:enumeration value="Other"/>   </xs:restriction> </xs:simpleType>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
