Support of the OpenMicroSim format in UC-win/Road

 Import Function
With its Micro Simulation Player option, UC-win/Road allows visualisation of any simulation's results saved in the OpenMicroSim format.

See this Sample video to see a demonstration of the basic feature of the Micro Simulation Player.

The following table explains how each tag of the OpenMicroSim format is handled by UC-win/Road.

XML Element Name Support in UC-win/Road
Simulations Several simulations can be played at the same time in UC-win/Road.

The Simulation element is displayed in the following screens of UC-win/Road.

-Setting Screen: It is displayed in the tree view of the simulation list. The Name attribute of the simulation is displayed at the node representing a simulation.

- Play List Editor: The Name attribute of the simulation is displayed in each bar representing a simulation.

The Length attribute is used as is if present in the xml file and the simulation is played until the end defined by the Length attribute. If the attribute is not present in the xml file, UC-win/Road recalculates it from the latest time found in all the elements of the simulation.

The Description attribute is not used in UC-win/Road.

Regarding the spatial coordinate system, for each simulation the relationship between the X and Y axis of the simulation and the South->North and West->East axis of UC-win/Road can be defined by the user.


Different sets of units can be used for each simulation opened in UC-win/Road.

UC-win/Road supports any type of unit but very small units such as Nanosecond or Nanometer cannot be represented at the actual scale.

Frames Supported in UC-win/Road.
Frame Supported in UC-win/Road.

MovingElmt and

Virtually any number of elements is supported in UC-win/Road. Since every element is loaded into the memory, the memory allowed for the process is the only limitation on the number of elements that can be loaded.

The Loop attribute of the element is taken into account during playback.

The Name attribute of the element can be displayed on the Setting Screen in the preview area and in the tree view.

For each simulation and every different value of the Type attribute, UC-win/Road allows the assignment of a model profile. A model profile is a list of 3D models and/or characters with proportions. When an element is represented in UC-win/Road one model is selected randomly from the profile associated to the type of this element. The proportions set in the profile are applied during the random selection.

The Mesh3D attribute is used to open the mesh file corresponding to the element. UC-win/Road can read rm (UC-win/Road's native format), 3ds or pk3 (character) files. The path provided in the Mesh3D attribute can be the full or the relative path to the xml file. The file must be on the local hard drive of the machine or in a share folder on the network.


Moving elements are supported in UC-win/Road.

Moving elements are only visible while the movement of the traffic and movement of the environment are enabled. Resetting the traffic will temporary delete all the elements from the scene.

Moving elements can be represented by a 3D model or a 3D character.

The position of such elements are constantly updated according to the data of the simulation during playback.


Fixed elements are supported in UC-win/Road.

For new elements not already present in the scene, UC-win/Road imports fixed elements and places them in the scene. Fixed elements can be represented by a 3D model or a 3D character.

UC-win/Road allows the association of a fixed element to an existing model in the scene. An association can link only one fixed element of the simulation to one model placed in the scene.

The position and direction of an existing model associated with a fixed element will not be updated by the position information present in the xml file.

The position and direction of a model automatically placed in the scene to represent a fixed element are the first values found in the states of the element.

Fixed elements should be used to control objects that are parts of the environment and always present in the scene. Only the animation of subparts of such objects should be controlled and the position should not change during the simulation. For example, a fixed element can be used to control traffic signals, barriers at crossing, toll gates etc.

AbstractElmt Not supported in UC-win/Road.

The Time attribute is used to determine the state to use during playback.

The Value attribute is used to change the colour of the traffic lights. UC-win/Road uses the following mapping rule:

Value State of each light.
Green Green ON, others OFF
Yellow Yellow ON, others OFF
Red Red ON, others OFF
LeftGreen Left Green Arrow ON, others OFF
LeftYellow Left Yellow Arrow ON, others OFF
LeftRed Left Red Arrow ON, others OFF
StraightGreen Straight Green Arrow ON, others OFF
StraightYellow Straight Yellow Arrow ON, others OFF
StraightRed Straight Red Arrow ON, others OFF
RightGreen Right Green Arrow ON, others OFF
RightYellow Right Yellow Arrow ON, others OFF
RightRed Right Red Arrow ON, others OFF
Any combination of the above separated by a comma character to light up several colors at the same time. Lights ON or OFF according to the combination.
OFF All lights OFF

If no Value is specified in the xml file, UC-win/Road does not change the current light setting.

The Animation attribute is used to change the animation of a character model.

The available animations are listed below:.

Value Animation
Walk Walk
WalkCrouched Walk Crouched
Run Run
Swim Swim
Backwards Walk Backwards
Jump Jump
JumpBackwards Jump Backwards
Land Land
LandBackwards Land Backwards
Idle Idle
IdleCrouched Idle Crouched
Turn Turn
Dead Dead

(The data of the animation itself is modeled in the character file imported in UC-win/Road.)


Used to place and update the position of the object.

If no Z value is present in the XML file, UC-win/Road uses 0 as the default value.

UC-win/Road allows placing all objects at the ground level (taking the roads in account) and overriding the Z value present in the xml file.


Used to orientate the object in the scene.

If no value is present in the XML file, UC-win/Road uses 0 as the default value.

The reference for the Yaw angle is the Y axis.


The Active attribute is applied by UC-win/Road but the Interpolation attribute is not currently supported. Only linear interpolation is possible.


Not supported in UC-win/Road.

 Export Function

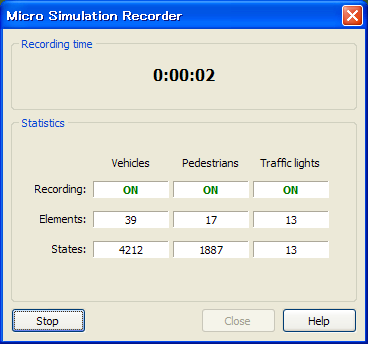

UC-win/Road is able to export the traffic movement calculated in UC-win/Road, including vehicles and traffic signals as well as the character movements, to an OpenMicroSim file.
